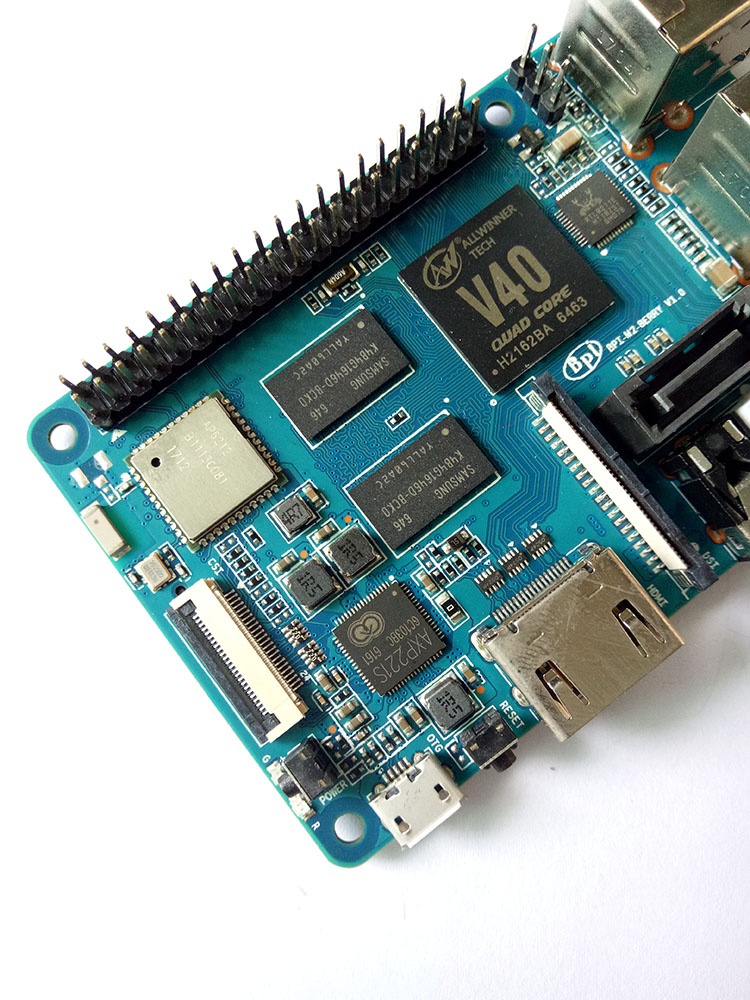

Banana Pi BPI-M2B M2 Berry A40i-H up to 1.2GHz Dual core Mali 400 MP2 GPU 1G LPDDR3 RAM

Item Code: BPi-M2-1GB
Wholesale Price:
Shipping Cost:
Estimated between
  • Description

About this item

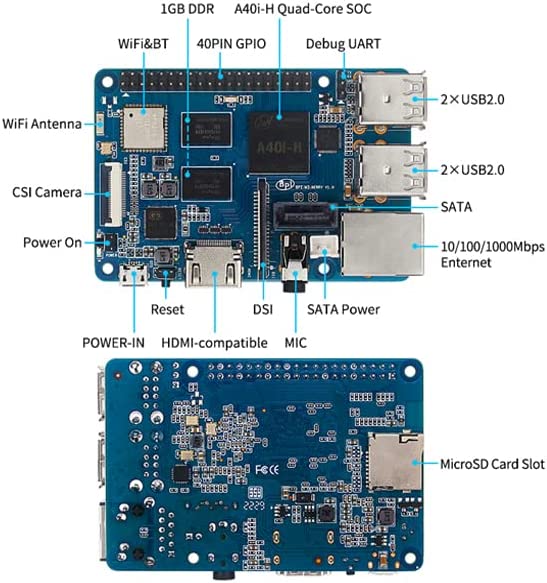

  • Banana Pi BPi-M2 Berry is the open source hardware platform, Banana Pi BPI-M2 Berry is a quad-core Cortex-A7 CPU, use Allwinner A40i-H design, it support WIFI+BT on board.and support SATA interface on board.
  • CPU: Allwinner 32 Bit Quad Core ARM Cortex A7 1.2 GHz; GPU: Dual core Mali 400 MP2 GPU
  • RAM: 1GB DDR3 SDRAM (Shared with GPU);Storage: MicroSD slot supports up to 64GB expansion. SATA port with minipc power
  • USB Ports: USB 2.0 PORT (x4), USB OTG (x1); Network: 10/100/1000 Mbit/s Ethernet + Wi-Fi 802.11 b/g/n + Bluetooth BT4.0 ; PCB Dimension: 92 x 60 mm
  • Power Source: Micro USB (OTG) 5V 2A ; OS: Android and Linux etc.; GPIO: 40 Pin Header: GPIO (x28) and Power (+5V, +3.3V and GND). Some of I/O
