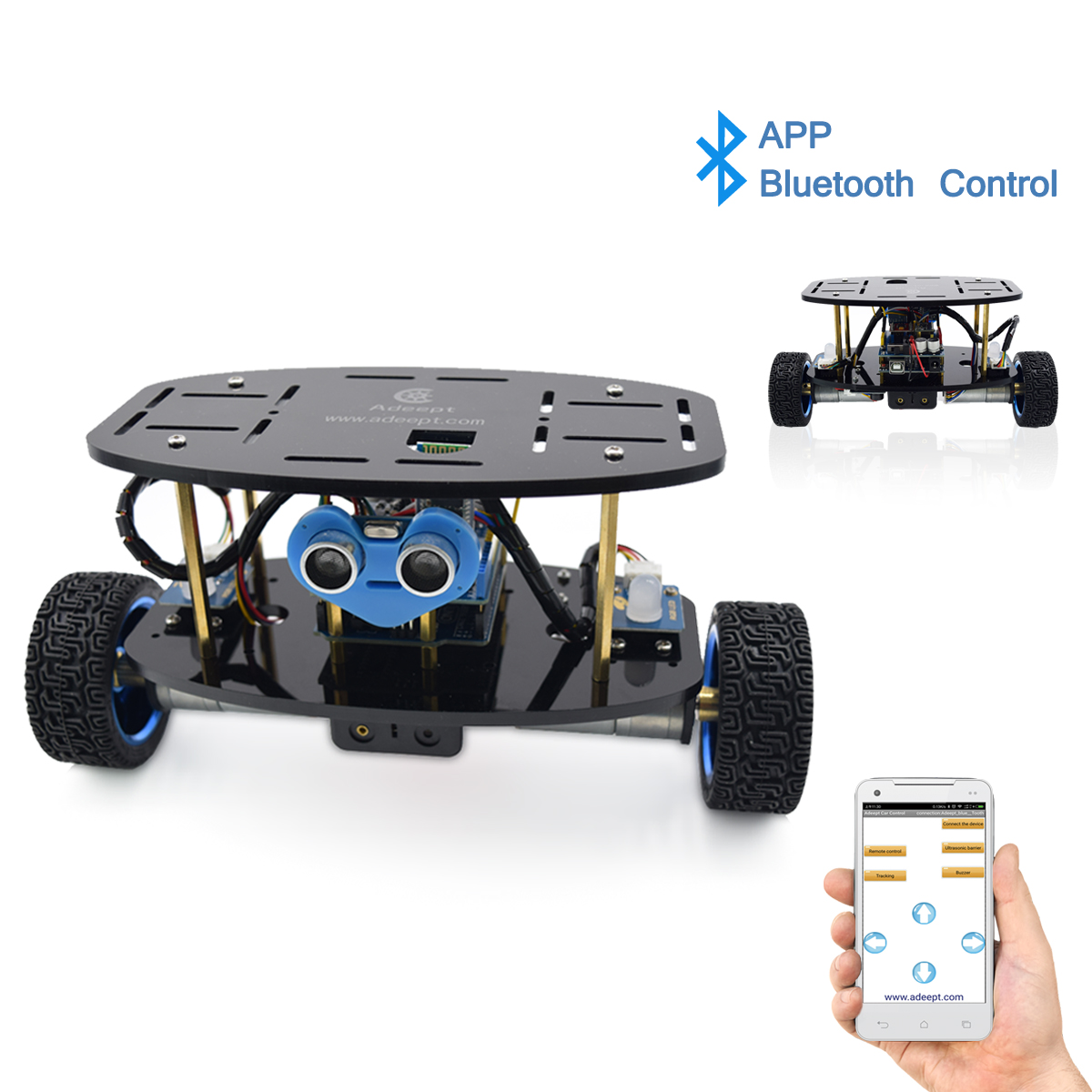

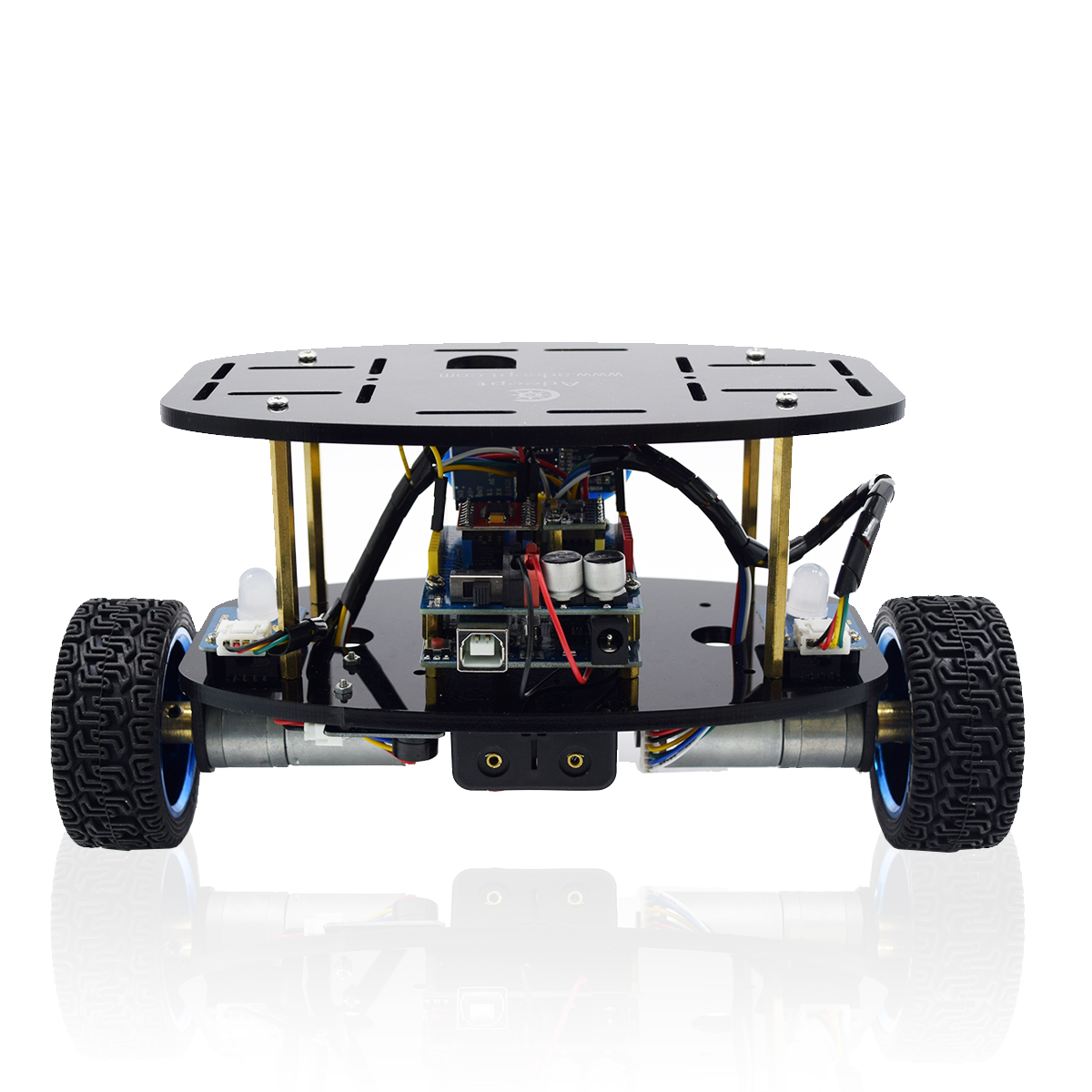

Adeept 2-Wheel Self-Balancing Upright Car Robot Kit for Arduino UNO R3, MPU6050 Accelerometer Gyroscope Sensor + TB6612 Motor Driver

Designed based on Arduino UNO R3, the self-balancing robot car kit is a fun and educational Arduino learning kit.
Item Code: ADA024
Original Price:
USD $94.99
(11% OFF)
Save $10.00(10% Off)
Shipping Cost:
Estimated between
  • Description

This is a self-balancing robot learning kit.The robot is developed based on the Dynamic Stabilization principle for its movement. It uses the MPU6050 precision gyroscope sensor to tell the tilt of the car body, and the Arduino UNO R3 to calculate the PID (Proportional-Integral-Derivative) parameters based on the data sent back by the MPU6050, thus keeping a dynamic balance of the car body by controlling the motors accordingly.

 - Balances, moves, run with two wheels
 - Controlled & moved by Android APP
 - Obstacle Avoidance and automatically follow

With all components needed for this robot car and the tutorials for assembly, you can make a self-balancing robot by following the easy-to-follow instructions step by step.

  • Designed based on Arduino UNO R3, the self-balancing robot car kit is a fun and educational Arduino learning kit. We carefully prepared a detailed and easy-to-follow tutorial(PDF), the tutorial contains complete circuit diagrams and assembly steps, according to our tutorial, you will be able to easily build your own self-balancing robot.
  • The self-balancing robot Kit has multiple functions, such as Balances, moves, run with two wheels, automatic obstacle avoidance, automatically follow and controlled by Android APP.
  • Controller - Adeept Arduino UNO R3; 6-axis Accelerometer Gyroscope Sensor - MPU6050; Motor Driver - TB6612
  • Quick-responding technical support for free.
  • Powered by two 18650 rechargeable batteries(This kit does NOT contain batteries and you need to prepare yourself)

Tutorials Link:

Package List:
1 Set Acrylic Plates
1x Adeept Arduino UNO R3 Board
1x Adeept Self-Balancing Robot Shield V1.0
1x HC-06 Bluetooth Module
1x Adeept Active Buzzer Module
2x Adeept RGB LED Module
1x MPU6050 Accelerometer Gyroscope Sensor Module
1x TB6612 Motor Driver Module
1x Ultrasonic Module
1x 18650x2 Battery Holder
2x Tire
2x Adeept Motor
2x Bracket
2x Coupler
2x Hex Wrench
2x M4*8 Screw
4x M3*6 Screw
4x M4*4 Locking Screw
8x M2 Nut
14x M3 Nut
8x M2*14 Screw
4x M2.5*4 Screw
6x M3*4 Screw
10x M3*8 Screw
10x M3*12 Screw
6x M3*18 Screw
2x M3*12 Countersunk Head Screw
6x M1.4*6 Self-tapping Screw
1x M2.5*11 Copper Standoff
6x M3*8 Copper Standoff
6x M3*12 Copper Standoff
4x M3*65 Copper Standoff
1x 3-Pin Wires
1x 4-Pin Wires
2x 6-Pin PH2.0 Wires
1x USB Cable
1x Cross Screwdriver
1x Slotted Screwdriver
1x Cross Socket Wrench
1x Large Cross-head Screwdriver
1x Winding Pipe
1x Ribbon
