Adeept Starter Kit for Raspberry Pi 3, 2 Model B/B+, LCD1602, Motor, C and Python Code, Beginner/Starter Kit with PDF Guidebook

A detailed user manual/guidebook(PDF) with 13 lessons and two versions code(Python and C) are provided, it is esay for you to learn Raspberry Pi and C&&Python programming.
Item Code: ADR006
Wholesale Price:
2
$19.49
5
$18.79
20
$18.29
50
$16.99
Shipping Cost:
to
Delivery:
Estimated between
Units
Buy At Amazon
Add to Favorite Items
  • Description





Features:
  • Fast free shipping with a tracking number.
  • A detailed user manual/guidebook(PDF) with 13 lessons and two versions code(Python and C) are provided, it is esay for you to learn Raspberry Pi and C&&Python programming. After you purchase, just send an email to us with title "require files for RPi starter kit", then we will show you how to access these documents.
  • Quick-responding technical support for free.
  • Re-designed case, it is very beautiful, and it is a wonderful gift for children.
  • Raspberry Pi is NOT included.
Lessons:
About the Raspberry Pi
Raspberry Pi Pin Numbering Introduction
Raspberry Pi GPIO Library Introduction
How to use the wiringPi and the RPi.GPIO
Lesson 1 Blinking LED
Lesson 2 Buzzer
Lesson 3 Controlling an LED with a button
Lesson 4 LED Flowing Lights
Lesson 5 Breathing LED
Lesson 6 Controlling a RGB LED with PWM

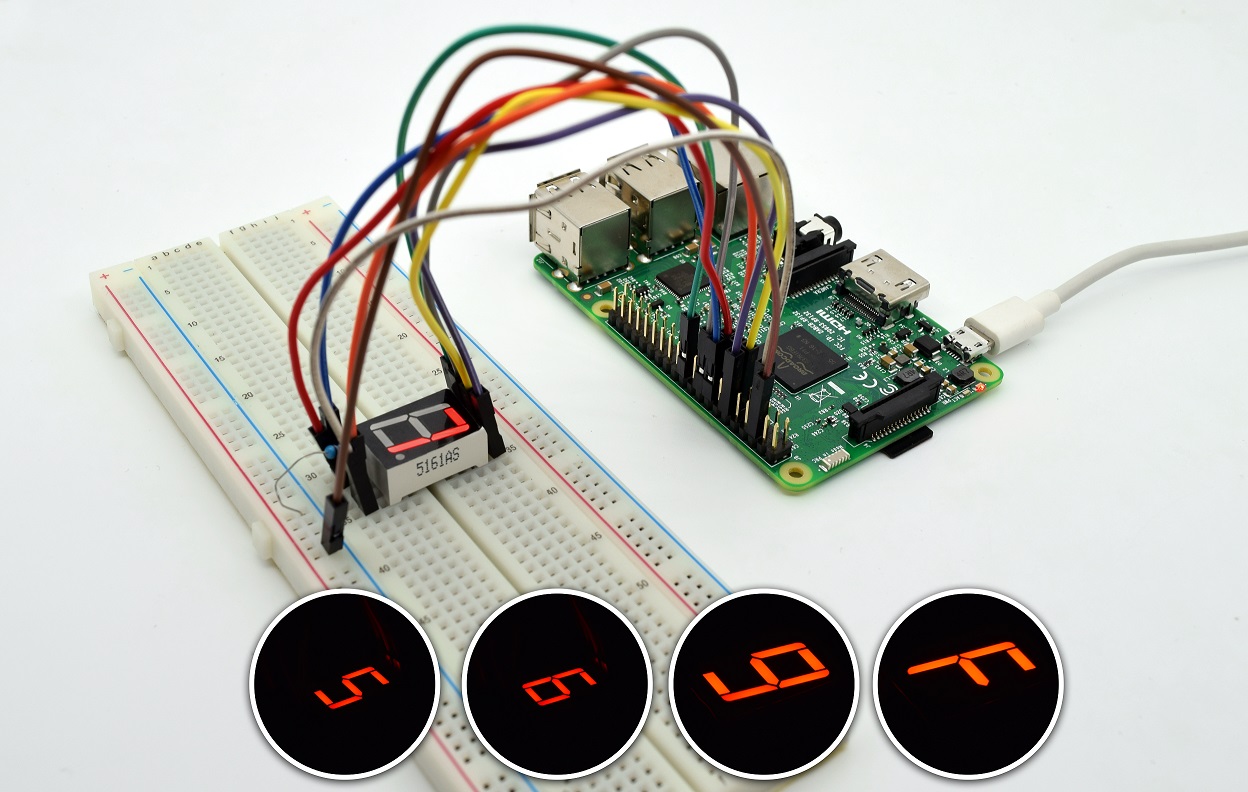

Lesson 7 7-segment display
Lesson 8 How to drive a 7-segment display with 74HC595

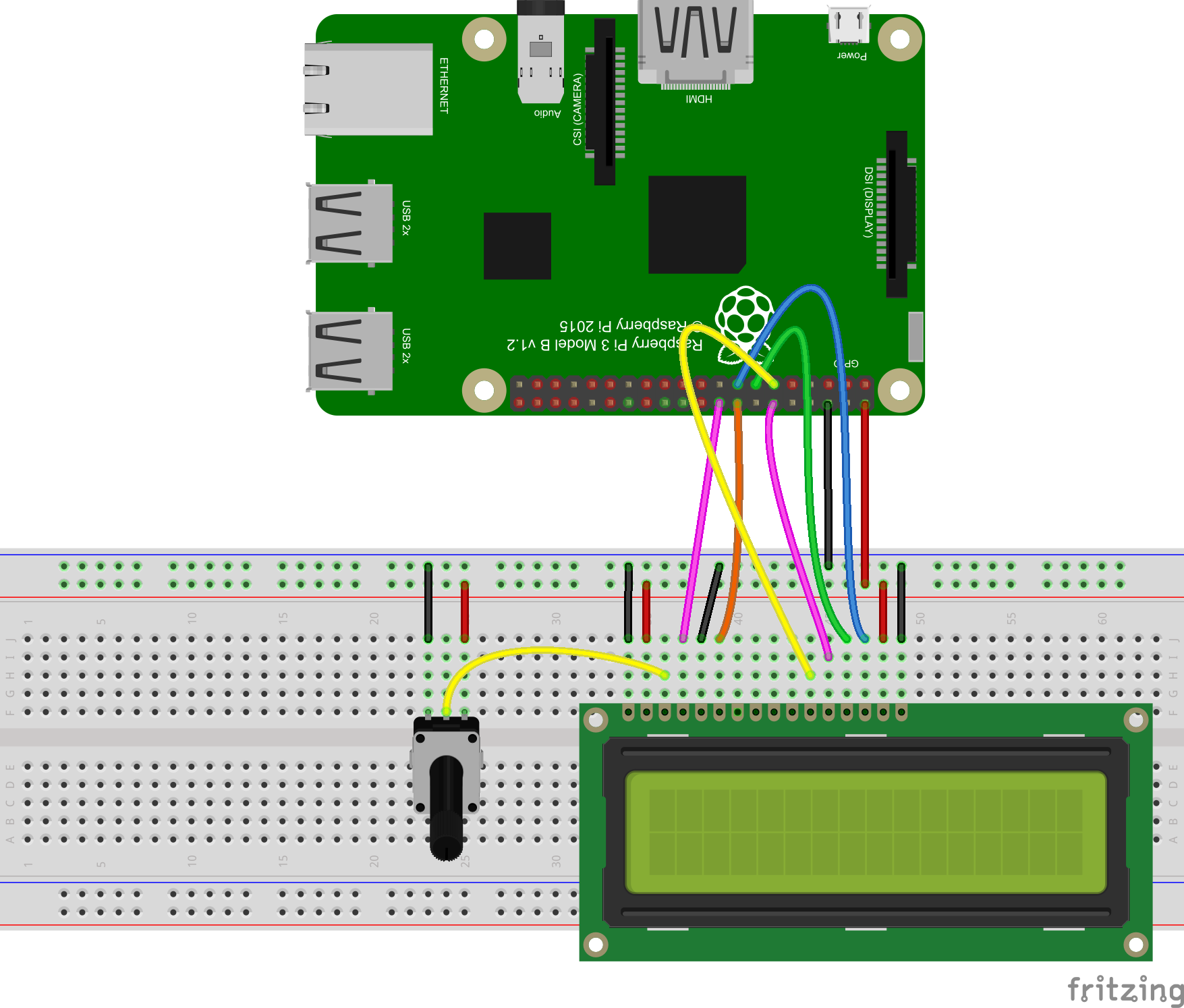

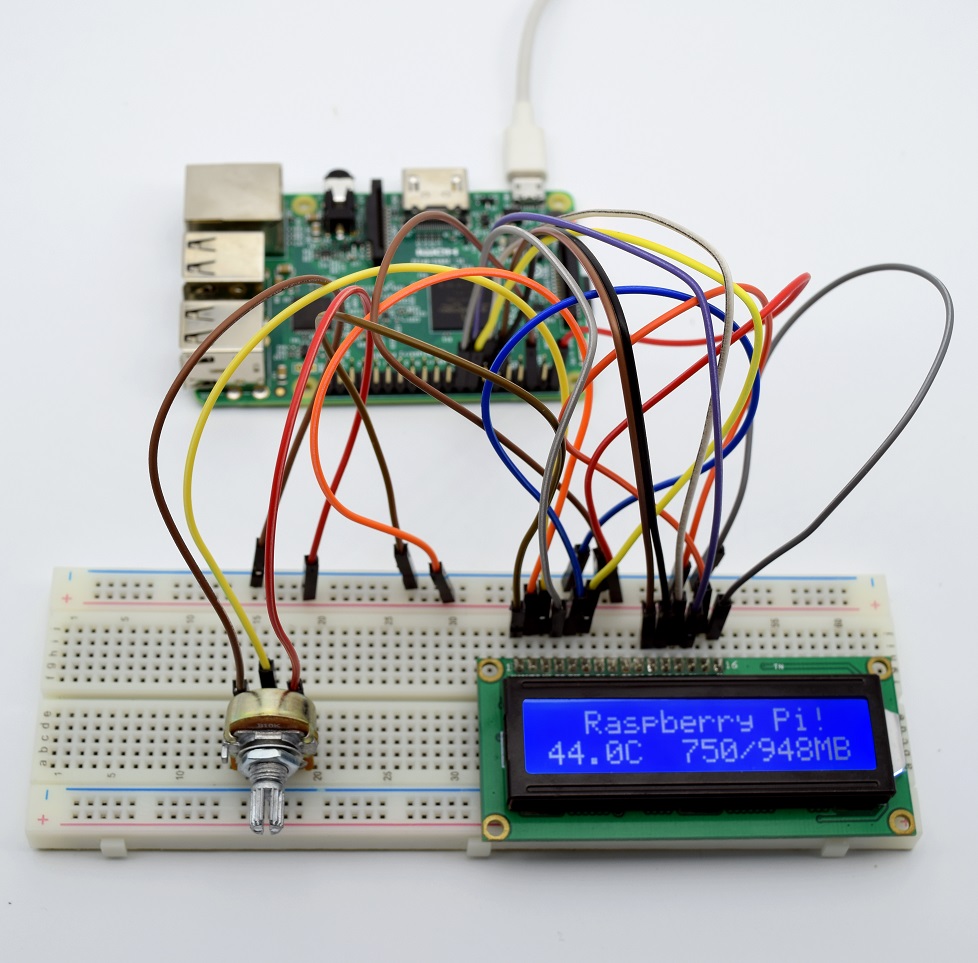

Lesson 9 LCD1602
Lesson 10 Photoresistor
Lesson 11 Thermistor
Lesson 12 Controlling an LED through the LAN
Lesson 13 DC motor


Package List:
1x DC Motor
1x L9110 motor driver

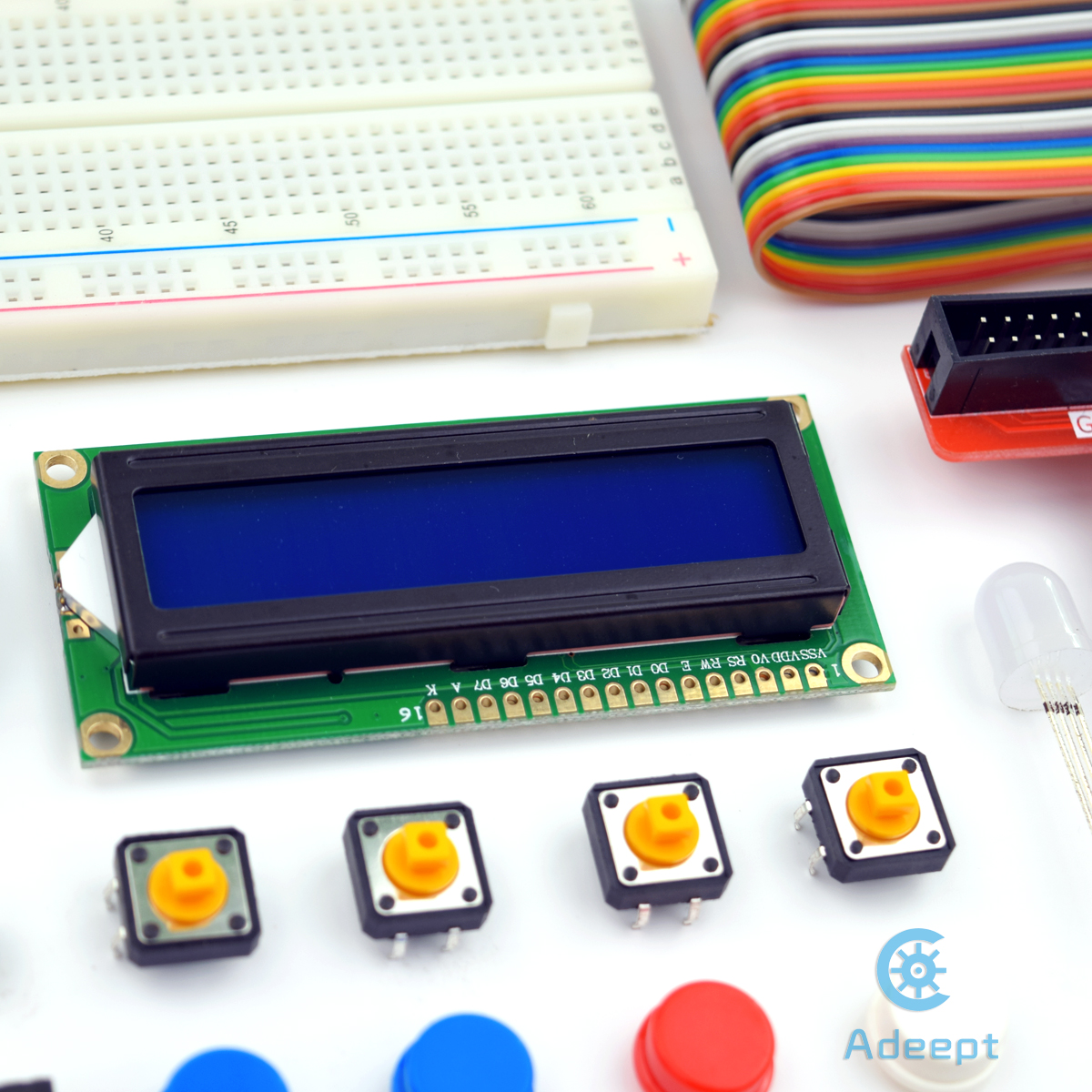

1x LCD1602
1x ADC0832
1x 74HC595
1x 7-Segment Display
1x Light Sensor (Photoresistor)
1x Analog Temperature Sensor (Thermistor)

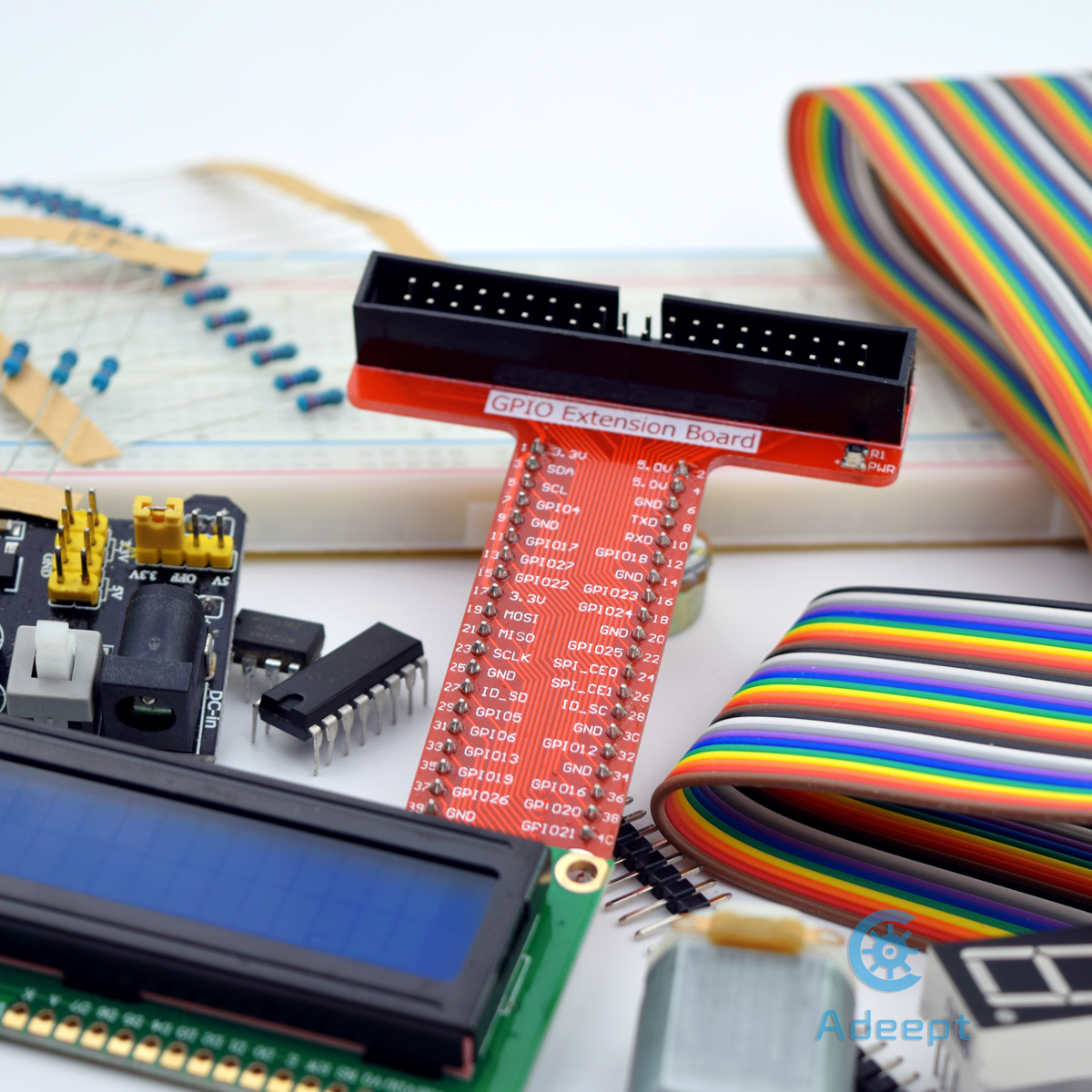

1x 40 pin GPIO Extension Board
1x 40 pin GPIO Cable
1x Breadboard Power Supply Module
1x Active Buzzer
2x Switch
1x RGB LED

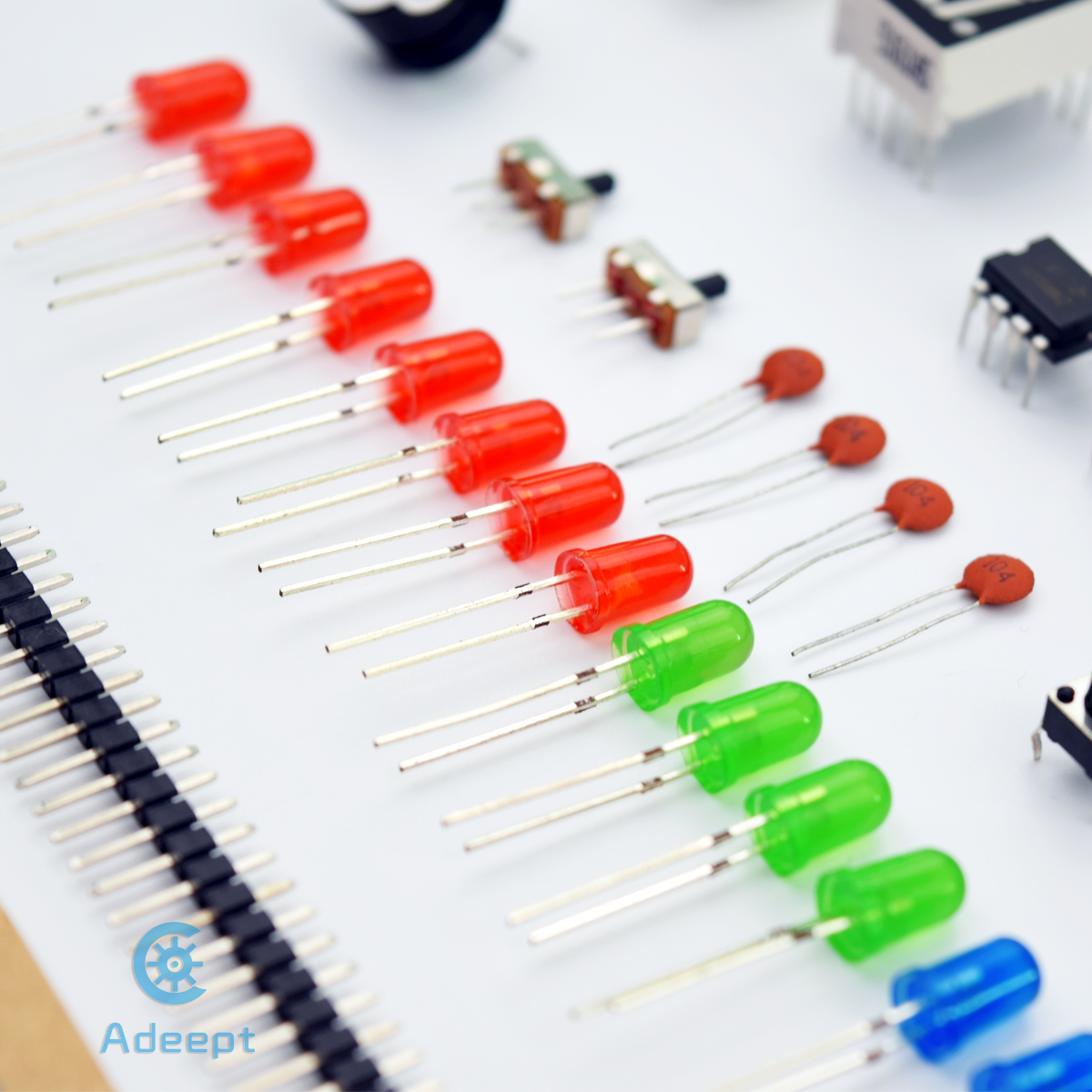

8x Red LED
4x Green LED
4x Yellow LED
4x Blue LED
16x Resistor(220Ω)
10x Resistor(1kΩ)
5x Resistor(10kΩ)
4x Capacitor (104)
2x Capacitor (10uF)

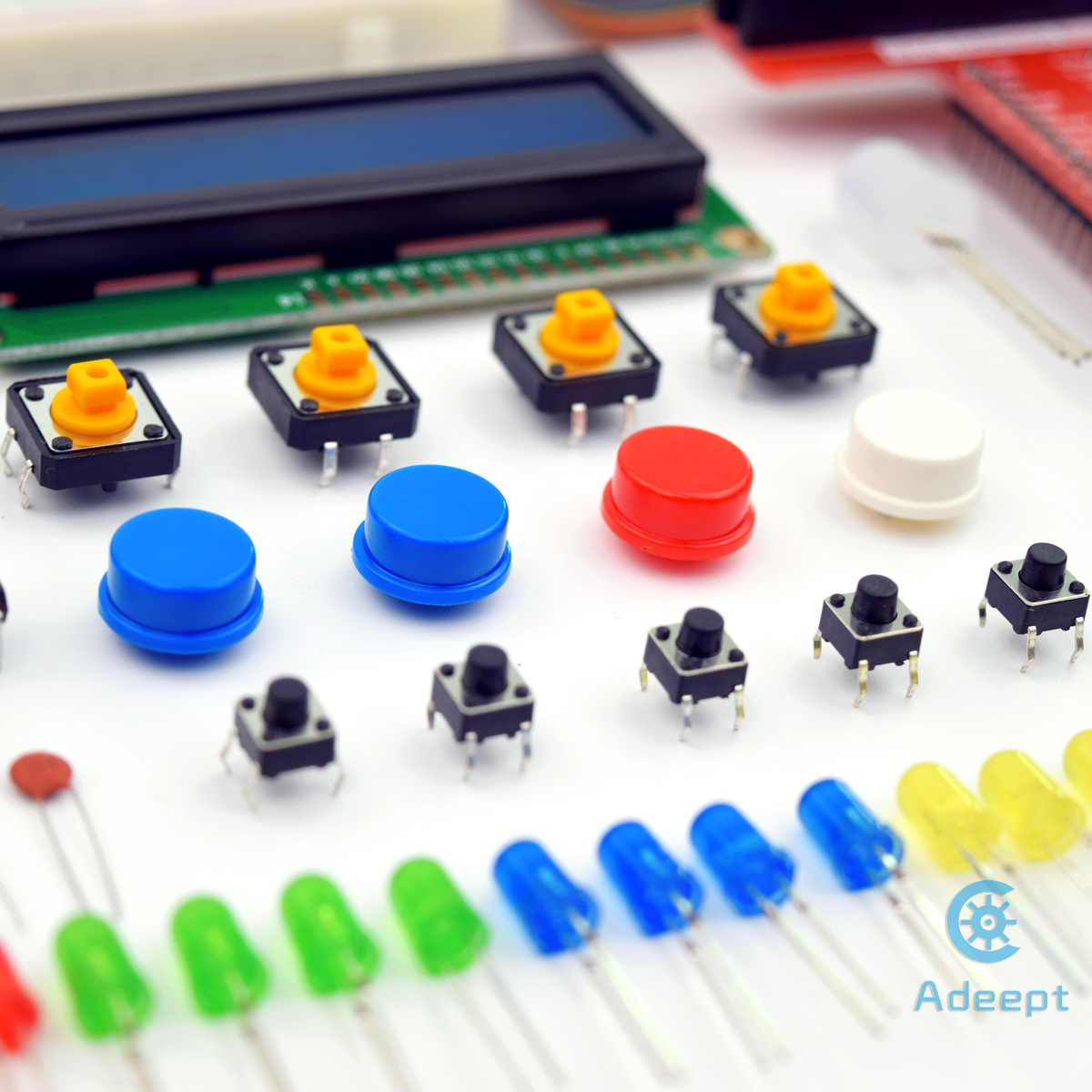

4x Button (large)
5x Button (small)
1x Button cap (red)
1x Button cap (white)
2x Button cap (blue)
2x NPN Transistor (8050)
2x PNP Transistor (8550)
2x 1N4148 Diode
2x 1N4001 Diode
1x Potentiometer (10KΩ)
1x Breadboard
30x Male to Male Jumper Wires
20x Male to Female Jumper Wires
1x Header (40pin)
1x Band Resistor Card
1x Project Box
Customer Reviews
Recent Reviews
  • ByLarry
  • Feb 11, 2018
This is the same review I wrote for Amazon.

This is a great kit to explore various ways to use the Raspberry Pi. I am running an RPi 3, Raspian (jessie). The kit as supplied is very full featured: everything needed to accomplish the sample projects. The examples cover everything from simple blinking LED to a TCP/IP client-server example. I didn't do all the projects but every one I tried worked. The guidance in the supplied documentation is ample. There is a PDF document with step-by-step instruction and source code for every project, both 'C' and Python (I am a 'C' person).

Improvements I would suggest are minimal. In general the documentation was excellent but I would have liked to gave seen standard schematics for each of the exercises. Some had schematics of the actual demo but some had only pictures showing how to wire the example. Pictures worked but I sometimes had to retrieve data sheets for external parts (like the LCD display) to be sure I had the wiring right.

The Adeept support was great. I had some issues with linking the wiringPi library but this was not an Adeept issue. I emailed the support about a minor issue and got quick a response. Also the breadboard power supply was damaged upon receipt (upper lip of the USB port was bent and the on/off switch did not work) and Adeept was quick to address the problem. They shipped and entire new kit, not just the board that was damaged. So, no complaints about Adeept support at all. It was excellent.
