Product List

3088

Product List



The components we provide



RobotHAT driver board x 1


51105 Thrust Bearing x 1


18650 battery holder x 1


LED strip x 2


MPU6050pin headerx 1


Camera x 1


180 degree AD002 servo x 3


3pin cablefor ws2812x 2


4pin cable x (White


camera cableblack x1


DC gear motor 130RPMwith 2pin cable x2

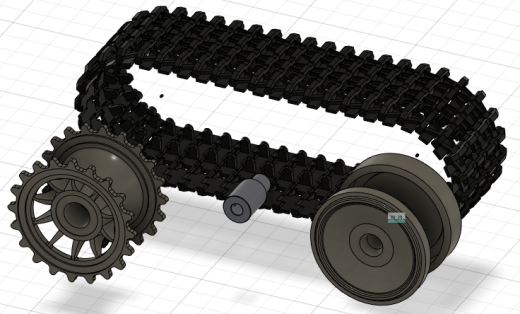

Tracks (including couplings and wheels)  x2


180 degree big servo  x3


OLED screenanti-reverse connection interface  x1


ultrasonic module x1


Servo extension cable x2


Tracking module x1


5pin cable x1


Copper pillar


M2*6  x4
M2.5*6+6 x8
M2.5*14 x4
M3*20     x8
M3*30     x4
M3*60  x4

Round head screw

M2*8  x14
M2*14  x4
M2.5*4     x8
M2.5*8     x2
M2.5*12 x1
M3*4  x44
M3*10     x40
M4*45     x2



Gasket


M4*8*1     x4

Double pass nylon column



M3*20     x4
M3*40     x7



Flat head screw


M3*6  x2





self-tapping screw


M1.4*6     x4
M1.7*6*6 x10



Hex nuts


M2         x22
M3         x12

Locknut


M3         x13
M4         x2



Mechanical parts bearings



F624ZZ     x2



A set of aluminum alloy

image.png x1

image.pngx1

image.pngx1

image.pngx1

image.pngx1

image.pngx2

image.pngx1

image.pngx2

image.pngx2

image.pngx1

Flexible material parts (chuck friction plate)  x6

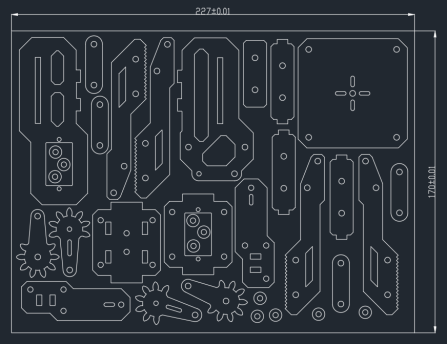

A set of acrylic


Small Cross-head Screwdriver x 1


Cross Socket Wrench x 1


Large Cross-head Screwdriver x 1


20CM Winding Pipe x 1

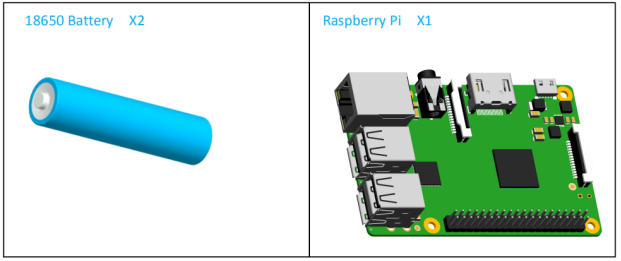

Self-prepared Parts


Choose an 18650 battery that supports a maximum output current of at least 4A or choose an 18650 battery with "high rate discharge".
