Lesson 18 Temperature & humidity sensor DHT-11

699

Temperature & humidity sensor DHT-11

Overview

In this lesson, we will learn how to use DHT-11 to collect temperature and humidity by programming Arduino.

Requirement

- 1* Arduino MEGA 2560

- 1* USB Cable

- 1* LCD1602

- 1* 10KΩ Potentiometer

- 1* DHT-11 Temperature and Humidity Sensor

- 1* Breadboard

- Several Jumper Wires

Principle

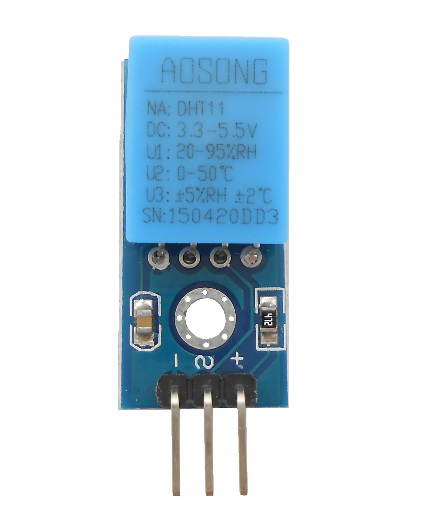

This DHT-11 temperature & humidity sensor features a temperature & humidity sensor complex with a calibrated digital signal output. By using the exclusive digital-signal-acquisition technique and temperature & humidity sensing technology, it ensures high reliability and excellent long-term stability. This sensor includes a resistive-type humidity measurement component and an NTC temperature measurement component, and connects to a high-performance 8-bit microcontroller, offering excellent quality, fast response, anti-interference ability and cost-effectiveness.


Item: DHT11

Measurement Range: 20-95%RH, 0-50℃

Humidity Accuracy: ±5%RH

Temperature Accuracy: ±2

‘+’: VCC (3.3~5.5V)

‘-’: GND (0V)

‘S’: data pin

Procedures

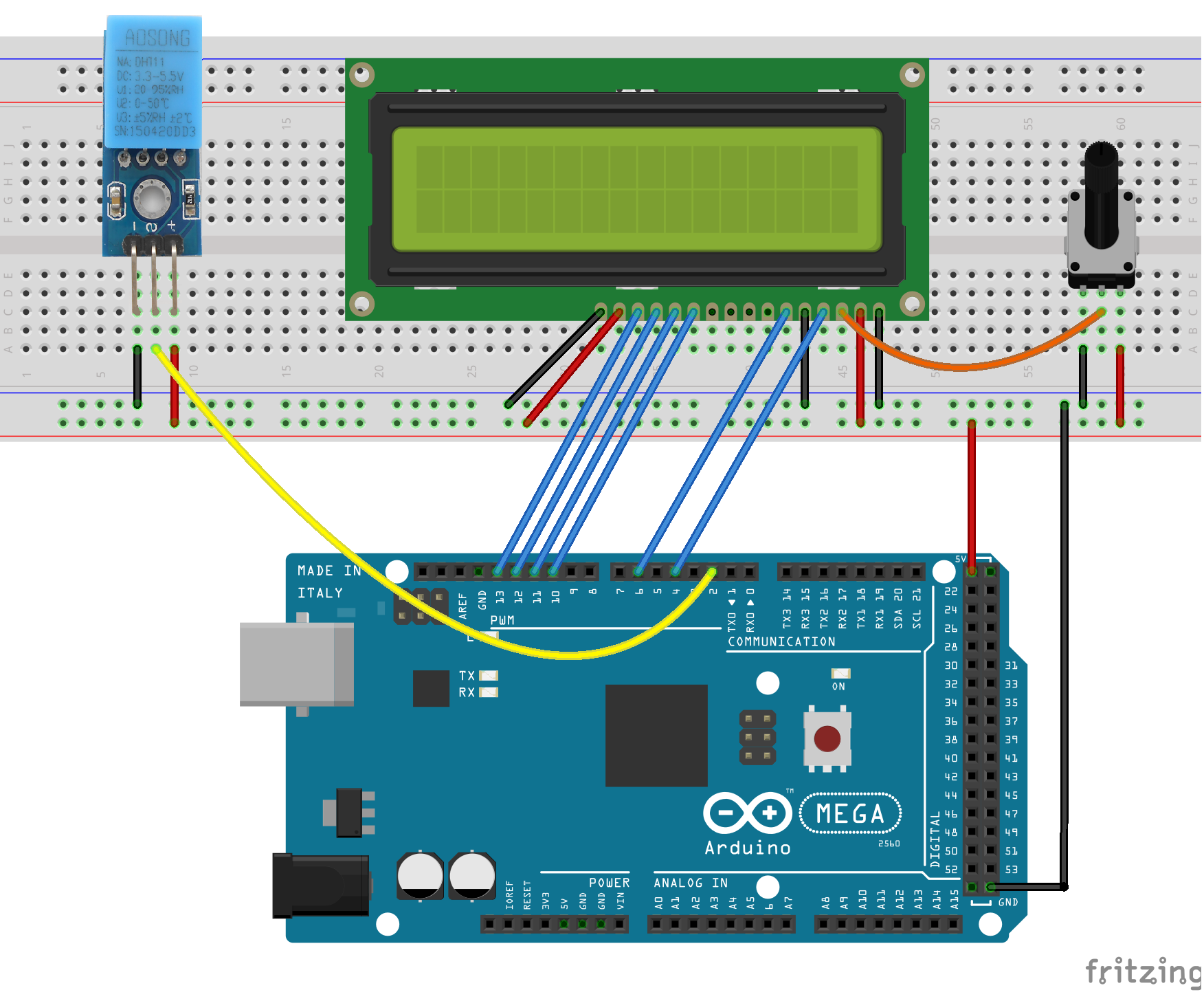

1. Build the circuit


2. Program

_18_DHT11.ino

Temperature & humidity sensor DHT-11
Overview
In this lesson, we will learn how to use DHT-11 to collect temperature and humidity by programming Arduino.
Requirement
- 1* Arduino MEGA 2560
- 1* USB Cable
- 1* LCD1602
- 1* 10KΩ Potentiometer
- 1* DHT-11 Temperature and Humidity Sensor
- 1* Breadboard
- Several Jumper Wires
Principle
This DHT-11 temperature & humidity sensor features a temperature & humidity sensor complex with a calibrated digital signal output. By using the exclusive digital-signal-acquisition technique and temperature & humidity sensing technology, it ensures high reliability and excellent long-term stability. This sensor includes a resistive-type humidity measurement component and an NTC temperature measurement component, and connects to a high-performance 8-bit microcontroller, offering excellent quality, fast response, anti-interference ability and cost-effectiveness.
Item: DHT11
Measurement Range: 20-95%RH, 0-50℃
Humidity Accuracy: ±5%RH
Temperature Accuracy: ±2℃
‘+’: VCC (3.3~5.5V)
‘-’: GND (0V)
‘S’: data pin
Procedures
1. Build the circuit
2. Program
/***********************************************************
File name: 18_DHT11.ino
Description: you can see the temperature and humidity data
             displayed on the LCD1602.
Website: www.adeept.com
E-mail: support@adeept.com
Author: Tom
Date: 2015/12/27
***********************************************************/

#include <dht11.h>
#include <LiquidCrystal.h>

dht11 DHT11;
#define DHT11PIN 2
LiquidCrystal lcd(4, 6, 10, 11, 12, 13);// Define the connection LCD pin
void setup()
{
     lcd.begin(16, 2);   //set up the LCD's number of columns and rows:
     lcd.clear();         //Clears the LCD screen and positions the cursor in the upper-left corner
     delay(1000);         //delay 1000ms
}

void loop()
{
    int chk = DHT11.read(DHT11PIN);
    lcd.setCursor(0, 0);    // set the cursor to column 0, line 0
    lcd.print("Humidity:");// Print a message of "Humidity: "to the LCD.
    lcd.print((float)DHT11.humidity, 2);// Print a message of "Humidity: "to the LCD.
    lcd.print(" % ");       // Print the unit of the centigrade temperature to the LCD.

    lcd.setCursor(0, 1);   // set the cursor to column 0, line 0
    lcd.print("Temp:    ");// Print a message of "Temp: "to the LCD.
    lcd.print((float)DHT11.temperature, 2);// Print a centigrade temperature to the LCD.
    lcd.print(" C ");      // Print the unit of the centigrade temperature to the LCD.
    delay(1000);            // delay 1S
}

3. Compile the program and upload to Arduino MEGA 2560 board
Now, you can see the temperature and humidity data displayed on the LCD1602.
Summary
By learning this lesson, I believe that you should be able to measure the room’s temperature and humidity. I hope you can make a simple smart home system based on this and the previous lessons.
