Lesson 24 How to Control Servo

2348

    In this lesson, we will carry out an interesting experiment by programming on the Micro:bit so as to control Servo.

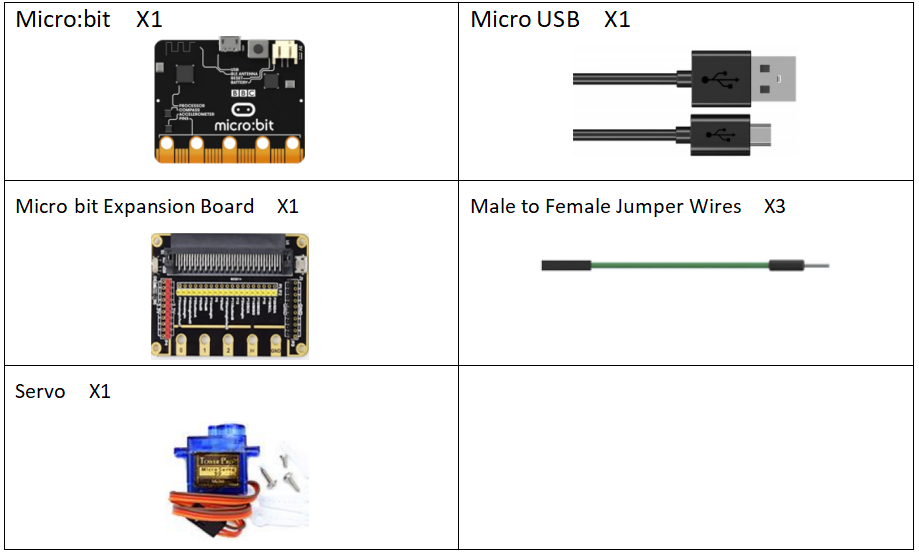

24.1 Components to be prepared



24.2 Servo

24.2.1 Servo

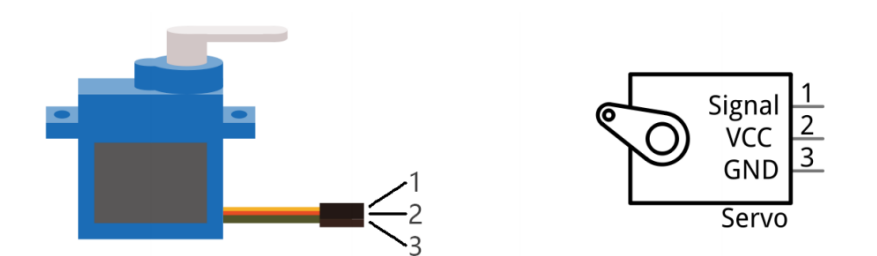

Servo is a compact package which consists of a DC Motor,a set of reduction gears to provide torque,a sensor and control circuit board.Most Servos only have a 180-degree range of motion via their“horn”.Servos can output higher torque than a simple DC Motor alone and they are widely used to control motion in model cars,model airplanes, robots,etc.Servos have three wire leads which usually terminate to a male or female 3-pin plug.Two leads are for electric power:Positive (2-VCC, Red wire),Negative (3-GND, Brown wire),and the signal line (1-Signal, Orange wire) as represented in the Servo provided in your Kit.

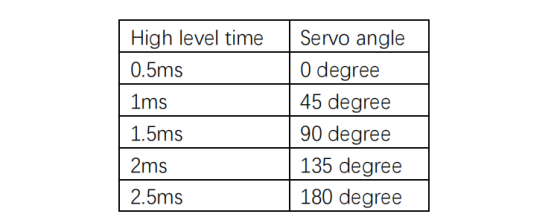

We will use a 50Hz PWM signal with a duty cycle in a certain range to drive the Servo. The lasting time 0.5ms-2.5ms of PWM single cycle high level corresponds to the Servo angle 0 degrees - 180 degree linearly. Part of the corresponding values are as follows:


As can be seen from the above table, the servo rotates from 0 to 180 degrees, and the corresponding pulse width is 0.5-2.5ms. Then the analog voltage value is written to the micro:bit pin ranging from 25.6 to 128.


24.3 Low level and high level


In circuit, the form of binary (0 and 1) is presented as low level and high level.

Low level is generally equal to ground voltage (0V). High level is generally equal to the operating voltage of components.

The low level of Micro:bit is 0V and high level is 3.3V, as shown below. When IO port on Micro:bit outputs high level, low-power components can be directly driven,like LED.



24.4 Circuit

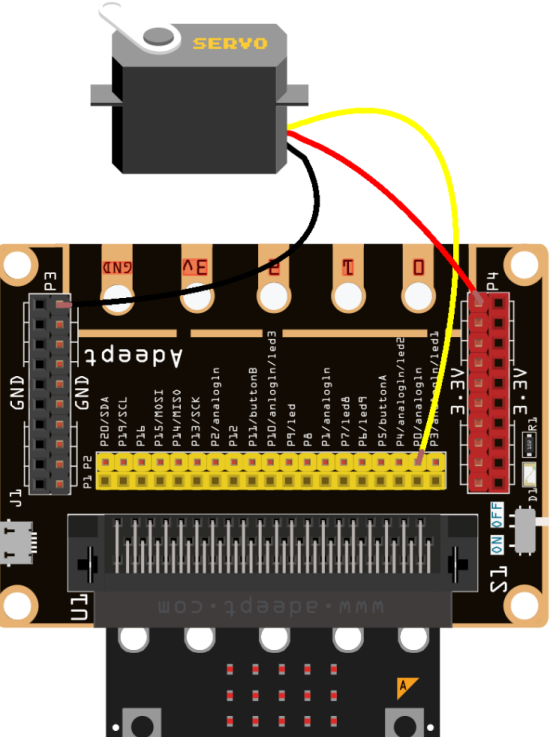

    You need to connect the components according to the circuit diagram below.



24.5 MakeCode programming

Next, we will use the online MakeCode Editor to complete the experiment in this lesson.


24.5.1 Start programming

(1) Log in to the website

1. You need to enter the URL in the address bar of Google Browser:

https://makecode.microbit.org/

2. After the website is successfully opened, the interface as shown below will appear:




(2) Import a project

1. In the HOME interface, click the "Import" button to import the external ".hex" file:



In the pop-up dialog box, select the "Import File", as shown in the following figure:




Click the "Choose File"



Find the code file for this lesson:

BBC_Microbit_Sensor\Code\Lesson_24\BlockCode

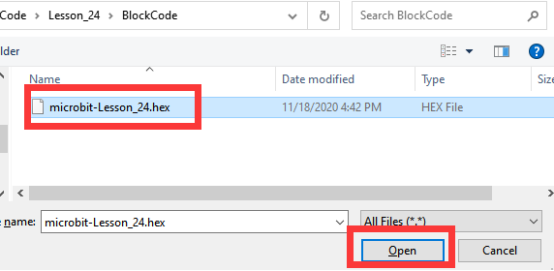

Select the file in ".hex" format and click the Open:

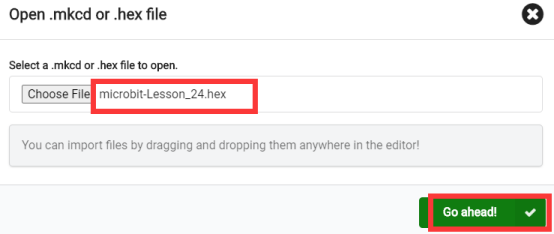

2. Notice whether the file has been loaded into the following window, and then click the "Go ahead!" button, as shown in the following figure:

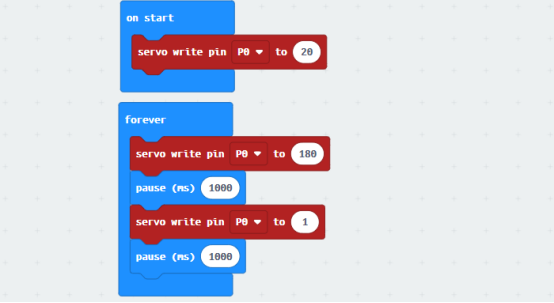

3.You can see the following interface when successfully opening the file:



24.5.2 Run the program

1. After the program is written, connect micro:bit and PC with a Micro USB cable.

2. After micro:bit is connected to the computer, you need to first "Pair device". Click the image.png button on the right of image.png in the lower left corner, and then click the image.png option, as shown in the following figure:



Then click image.png in the lower right corner



Then the following dialog box will pop up, select image.png, and then click image.png



After the device is successfully paired, the image.png button changes to image.png



3. Start to download the program to Micro:bit, and click the image.png button. Generally, the program will be downloaded directly to the Micro:bit. After the download is completed, your Micro:bit will restart and run the program just downloaded. You will see that the Servo rotates, as shown below:



[Note]

   1. If no experimental Servo has been detected after clicking the button image.png, you need to click the image.png button on the right of the image.png, and then click the image.png , and observe the Servo again, as shown in the following figure:


 2.  If Servo fails to rotate, you should check whether the wiring is successfully connected.


  If you have problems, please send us an email: support@adeept.com


24.5.3 Learn the code program

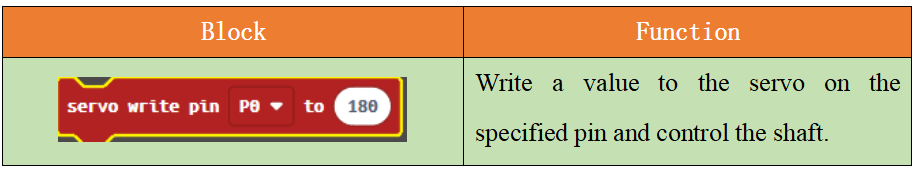

The following instruction blocks will be applied in the program. Please see the description of the function as follows:








    In the for loop of 0-180, let the servo change from 0 to 180 degrees.



24.6 Python programming

24.6.1 Run the program

1.Connect micro:bit and PC with a Micro USB cable.

2. Open the Mu Editor installed on the computer, and click the button [Load] in the upper left corner to open the source code program of this lesson:



Find the code file for this lesson:

BBC_Microbit_Sensor\Code\Lesson_24\PythonCode

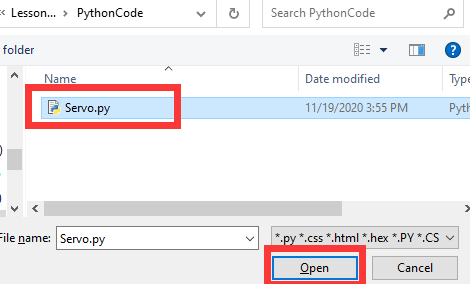

Select the file in ".py" format and click the Open:

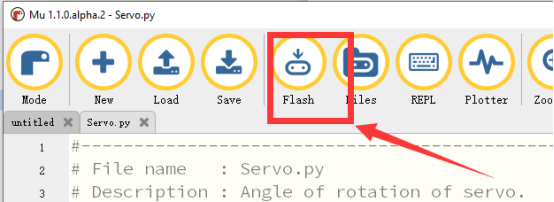

3. Click the [Flash] button to download the program to Micro:bit, as shown in the following figure:

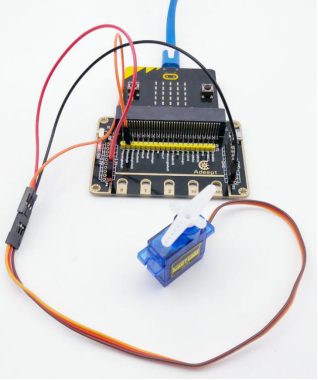

4.After successfully downloading the program, you will see that the Servo rotates, as shown below:



    If you have problems, please send us an email: support@adeept.com


24.6.2 Learn the code program


    Set the interval of the PWM signal to 20ms. In a 1-90 for loop.


12

13

14

15

16

17

pin0.set_analog_period(20)

while True:

    pin0.write_analog(90)

    sleep(1000)

    pin0.write_analog(1)

    sleep(1000)
